SKU
YS122-Y

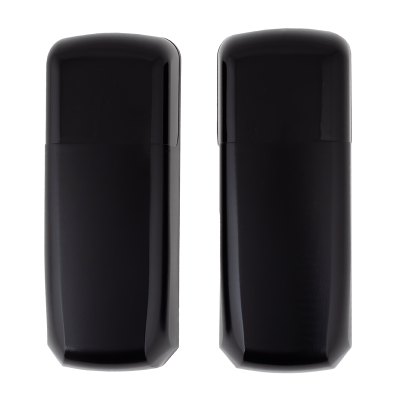

Photocell pair, with battery powered transmitter unit
€35.80
Description
The YS122-Y is an infrared photocell pair consisting of a battery powered transmitter and a wired receiver unit.
Downloads
Details
Operating principle: presence detection along a line
It helps prevent a gate or barrier from closing as long as any object or person is present in the path of the photocell, thereby reducing the risk of accidents.
Recommended use: When detection is required along the line of the gate, it is ideal for protection against closing onto objects or people.
The product has an IP54 protection rating.
More Information
| Voltage (V) | 12 / 24 V |
|---|---|
| Voltage type | AC/DC |
| Power supply requirement | permanent (on RX side), battery (on TX side) |
| Maximum current consumtion (A) | ~ 45 mA |
| Consumption (W) | >2 W |
| Type of sensor | infrared (IR), presence detection |
| Type of connection | screw connection |
| Operating modes | in case of detection, it gives a signal on the controlled output |
| Controlled output type | 1 relay (IR: NC-COM) |
| Controlled output current rating | 30V DC @ 1A |
| Installation height | 0,2 - 0,6 m (recommended) |
| Maximum IR detection distance | 0,5 - 10 m |
| Housing material | plastic ABS |
| Dimensions | 128 x 50 x 32 mm (x2) |
|---|---|
| Mounting | surface mounted |
| Recommended use | for vehicle access control, for the implementation of anti-collision protection |
| Installation area | outdoor |
| Package contents | screw set, 1 pair of transmitter and receiver |
| Compatible products | BXB-POL-YS12X-50 |
| IP rating | IP54 |
| Environmental temperature | -20°C ~ +60°C |
| Humidity tolerance (non-condensing) | <80% |
| Gross weight | 0,181 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
