YS123-R

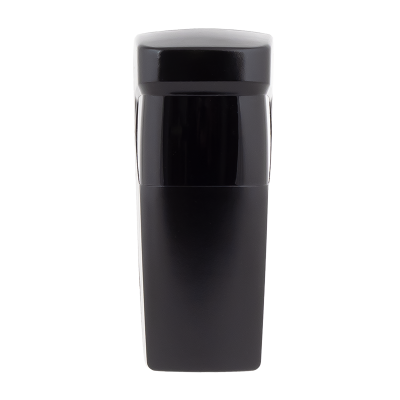

Infrared reflective photocell
€37.20
Description
The YS123-R is a reflective infrared photocell, designed to enable wiring only on one side.
Downloads
Details
Operating principle: presence detection along a line
It helps prevent a gate or barrier from closing as long as any object or person is present in the path of the photocell, thereby reducing the risk of accidents.
Recommended use: When detection is required along the line of the gate, it is ideal for protection against closing onto objects or people.
Warning! Photocells based on prismatic reflection are sensitive to highly reflective surfaces, which may reflect false signals back to the transmitter’s sensor.
The product has an IP54 protection rating.
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | AC/DC |
| Power supply requirement | permanent |
| Maximum current consumtion (A) | 30 mA |
| Type of sensor | infrared (IR), reflexive |
| Type of connection | screw connection |
| Operating modes | in case of detection, it gives a signal on the controlled output |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 30V DC @ 1A |
| Installation height | 0,2 - 0,6 m (recommended) |
| Maximum IR detection distance | 0,5 - 8 m |
| Housing material | plastic ABS |
|---|---|
| Dimensions | 100 x 40 x 35 mm |
| Mounting | surface mounted |
| Recommended use | for vehicle access control, for the implementation of anti-collision protection |
| Installation area | outdoor |
| IP rating | IP54 |
| Environmental temperature | -20°C ~ +60°C |
| Humidity tolerance (non-condensing) | <80% |
| Gross weight | 0,122 kg |
| Warranty | 12 months |
| Product category | B |
