0036 1 406 98 08
SKU
YK-PHC102-NO/NC
Photocell sensor for barriers - NO/NC
€66.00
Description

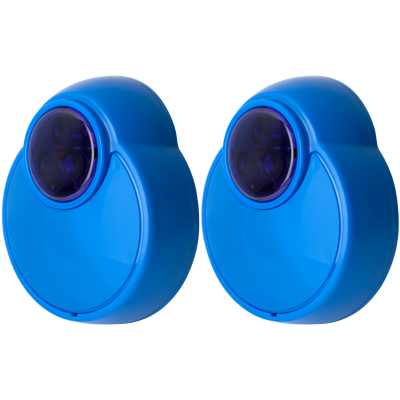

The YK-PHC102-NO/NC is an active photocell sensor pair, ideal for setting up protection against barriers closing.
Downloads
Details
Operating principle: presence detection along a line
It helps prevent a gate or barrier from closing as long as any object or person is present in the path of the photocell, thereby reducing the risk of accidents.
Recommended use: When detection is required along the line of the gate, it is ideal for protection against closing onto objects or people.
The product has an IP54 protection rating.
More Information
| Voltage (V) | 9 - 16 V |
|---|---|
| Voltage type | AC/DC |
| Type of sensor | infrared (IR) |
| Type of connection | wired |
| Controlled output type | 1 relay (NO-NC-COM) |
| Controlled output current rating | 3A @ 25V AC | 3A @ 30V DC |
| Housing material | plastic ABS |
| Dimensions | 87 x 70 x 18 mm |
| Mounting | surface mounted |
| Recommended use | for vehicle access control, for the implementation of anti-collision protection |
|---|---|
| Installation area | indoor, outdoor |
| Package contents | sensor unit |
| IP rating | IP44 |
| Environmental temperature | -20°C ~ 50°C |
| Gross weight | 0,2 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
