0036 1 406 98 08
SKU
BMTV-535H

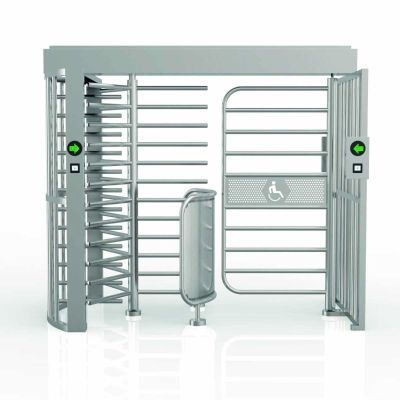

Full-height turnstile - semi automat - 1 lane - outdoor
€15,527.00
Description
The BMTV-535H is a semi-automatic turnstile designed for pedestrians and persons with disabilities. The gate allows two-way passage. Its aesthetic stainless steel (INOX) construction provides an elegant appearance and long-lasting durability. Thanks to its fail-safe design, in the event of a power outage the arms can rotate freely, allowing passage even under these conditions.
Downloads
Details
Turnstile gates are designed for access control to high security areas. Turning the bars is only possible after swiping a card with the appropriate authorization, similar to a turnstile, but unlike a turnstile, you cannot climb over or crawl under the bars, so you can even use a turnstile for unattended access.
It can also be installed outdoors and is more resistant to environmental conditions thanks to its IP55 protection.
Materials needed for maintenance:
 |
 |
 |
 |
|
BER-FEKTISZTITO Brake cleaner spray 500ml |
BER-INOXAPOLO Stainless steel maintenance spray 400ml |
BER-UNISPRAY6+ Universal spray 400ml |
BER-HLS500 Lubricant spray 500ml |
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Consumption (W) | 150 W |
| Body design | brushed INOX - SUS304 |
| Dimensions | 1630 x 2300 x 1580 mm |
| Return by springs | yes (helps to take position) |
| Lockable? | automatically after rollover |
| Product family | semi-automat, one passage turnstile (full height) |
| Automatic closeure | with DIP switch (default 9s) |
| Reclosure delay | 5-12 s |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
| Communication | RS-485 |
| Passage direction | two-way |
| Passing speed | 25-30 persons/min |
|---|---|
| Passing width | ~ 640 mm |
| Emergency mode | in case of a power outage, the wing rotates freely |
| Built-in LED | side (dynamic) |
| Package contents | parts of the full-height turnstile, fixing screws (in concrete) |
| Compatible products | remote control module, BXC-SPIDER - RS485 communicator |
| Recommended use | medium traffic areas |
| Installation area | indoor, outdoor |
| Environmental temperature | -15°C ~ +55°C |
| Gross weight | 450 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | E+ |
