SKU
YK-TT122S+ONYX

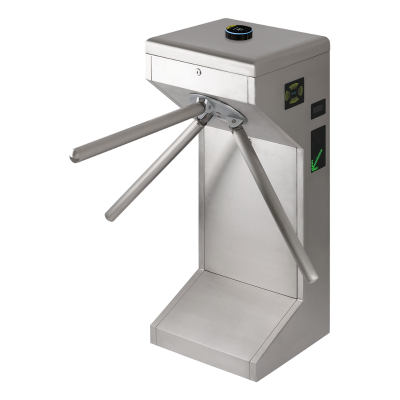

Semi-automatic turnstile with integrated credit card terminal
€2,845.00
Description
The YK-TT122S+ONYX is a semi-automatic turnstile with an integrated credit card terminal, enabling quick and contactless payments.
Details
• Installation fee and transaction costs: The terminal installation fee is 6000 HUF, and a 4% handling fee is charged for each transaction. No other banking fees apply.
• Contract signing period: The contract signing process takes approximately 2-3 weeks, which includes the necessary administrative steps and agreement on service terms.
• Device installation: The system is delivered fully prepared, requiring only the securing of the device, power supply, and possibly the extension of the GSM antenna in shaded areas for installation.
• NAV registration: The equipment is suitable for registration with the NAV (Hungarian Tax and Customs Administration) and complies with the relevant legal requirements.
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 6A @ 12V DC |
| Consumption (W) | 30 W |
| Body design | brushed INOX - SUS304 ( 1.2 mm thickness, double folded edges) |
| Dimension of body | 380 x 1000 x 420 mm |
| Arm size and type | 500 mm (brushed) |
| Arm cross section | ø38 mm |
| Arm load capacity | middle of arm 80 kg, end of arm 40 kg |
| Return by springs | yes (helps to take position) |
| Lockable? | automatically after rollover |
| Product family | normal-shape, turnstile |
| Automatic closeure | with DIP switch (default 2s) |
| Reclosure delay | 2 - 25 s |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s), payment by credit card |
| Other functions | continous passage in one direction (adjustable with DIP switch) |
| Communication | RS485 (with BXC-SPIDER communicator) |
| Passage direction | one-way/two-way |
|---|---|
| Passing speed | 30-35 persons/min (100%) |
| Passing width | 550 mm |
| Emergency mode | in case of a power outage or emergency signal, it drops the arm, 12V DC appears on the ALARM output |
| Built-in LED | side (static) |
| Package contents | turnstile, arms, fixing screws (in concrete) |
| Compatible products | remote control module |
| Recommended use | high-traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| Life time | MCBF: 10 million turnovers |
| IP rating | IP42 |
| Environmental temperature | -25°C ~ +55°C |
| Humidity tolerance (non-condensing) | >90% |
| Gross weight | 40 kg |
| Warranty | 24 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | A |
