0036 1 406 98 08
SKU
TS-SBT2000S-B-ST

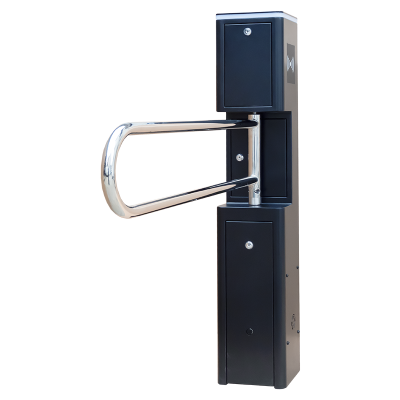

Automatic swing gate with a brushless motor, designed for heavy use, in a black powder-coated housing with metal arms
€2,579.00
Description
The TT-SBT2000S-B-ST is an automatic swing gate, available in an aesthetic black housing with a powder-coated finish and metal arms. It allows for bidirectional passage, features adjustable closing timing, and includes an alarm system.
Details
Swing gates are an excellent tool for personnel access control, providing a secure, controlled, and convenient entry for people. Compared to turnstiles, swing gates offer the advantage of being accessible to individuals with disabilities, those with strollers, or those carrying large packages.
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 6,25A @ 24V DC |
| Motor type | DC stepper motor |
| Opening direction (DIN 107) | right/left |
| Body design | powder coated black |
| Dimension of body | 187 x 1109 x 202 mm |
| Wing size and type | 800 x 195 (bent pipe) |
| Wing cross section | ø27,5 mm |
| Product family | electric swing gate |
| Opening and closing time | adjustable (5 levels) |
| Automatic closeure | set from program (default 5s) |
| Reclosure delay | 0-60 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
| Communication | RS485 (with BXC-SPIDER communicator) |
| Passage direction | one-way/two-way |
| Passing speed | 10 persons/min |
|---|---|
| Passing width | 900 mm |
| Emergency mode | in case of a power outage, the wing moves freely |
| End position setting | from control electronics (right and left limit position) |
| Built-in LED | above (dynamic) |
| Package contents | swing gate, plexiglass arm, screw set |
| Compatible products | remote control module, BXC-SPIDER - RS485 communicator |
| Recommended use | medium traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| Life time | MCBF: 5 million opening cycles |
| Environmental temperature | -15°C ~ 60°C |
| Humidity tolerance (non-condensing) | 20 - 93% |
| Gross weight | 41 kg |
| Warranty | 24 months |
| Certificates | CE |
| Manufacturer | ZKTeco |
| Product category | B+ |
