SKU
YK-PB2044(V3)-95
Swing gate - automatic - servo
€1,443.00
Description
The YK-PB2044 is an automatic swing gate. It is available in an aesthetically pleasing INOX housing with a brushed finish. It provides bidirectional passage, can be made uninterruptible, and features adjustable opening timing and speed.
Downloads
Details
Swing gates are an excellent tool for controlled personal entry, ensuring monitored, secure, and convenient access for people. A major advantage over turnstiles is that they can be comfortably used by people with disabilities, those with strollers, or those carrying large packages.
| Auxiliary materials required for maintenance: | |||
 |
 |
 |
 |
|
BER-FEKTISZTITO Brake cleaner spray 500ml |

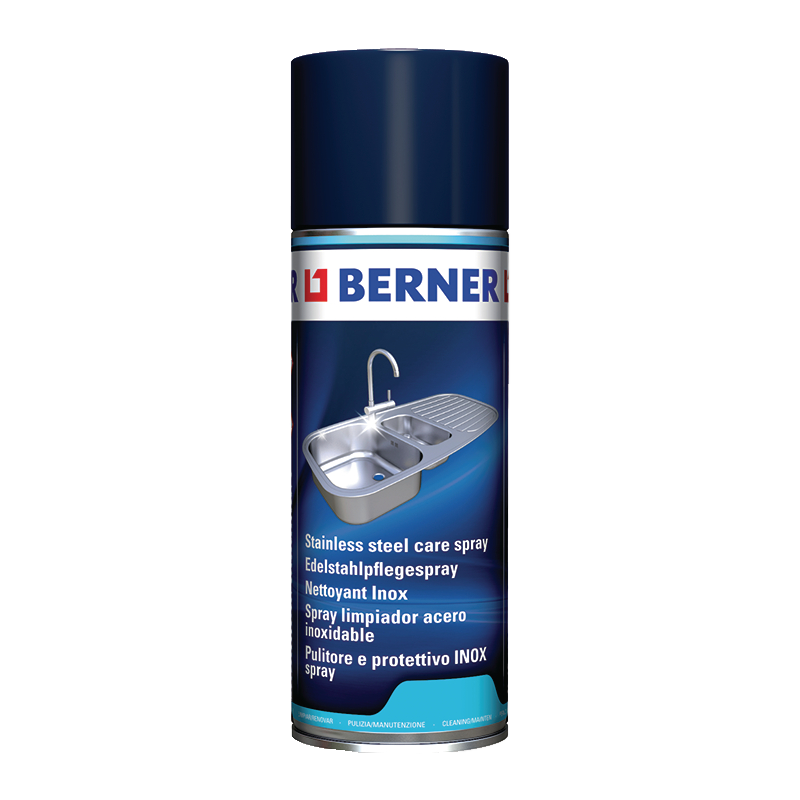

BER-INOXAPOLO Stainless steel care spray 400ml |

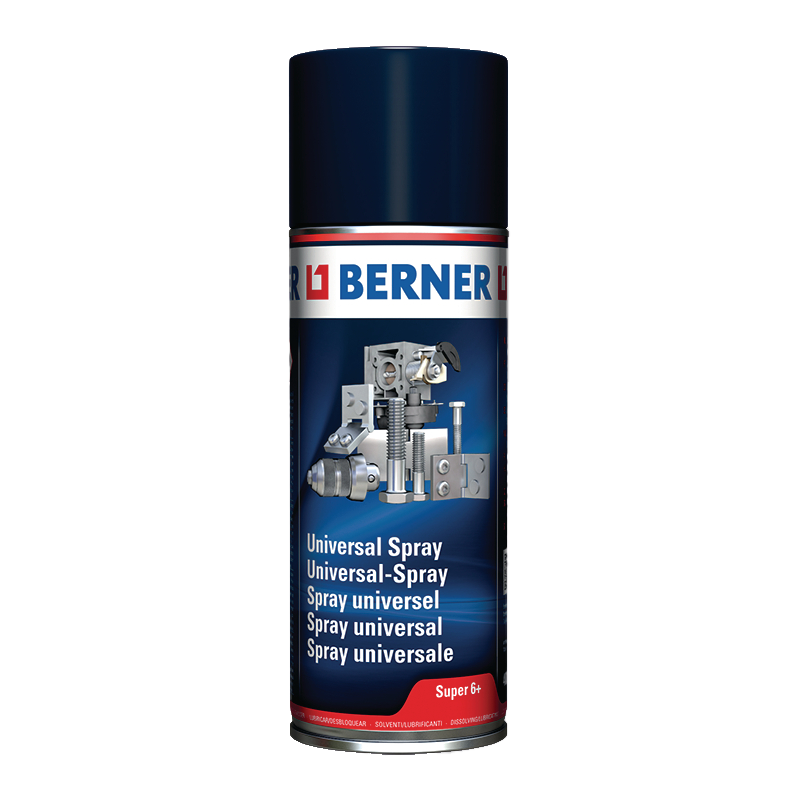

BER-UNISPRAY6+ Universals spray 400ml |
BER-HLS500 Lubricant spray 500ml |
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 2A @ 24V DC |
| Consumption (W) | 48 W |
| Motor type | DC brush |
| Opening direction (DIN 107) | right/left |
| Body design | INOX |
| Dimension of body | Ø167 mm x 997 mm |
| Wing size and type | 950 x 260 (bent pipe) |
| Wing cross section | ø25 mm |
| Product family | electric swing gate |
| Opening and closing time | adjustable |
| Automatic closeure | set from program (default 0,2) |
| Reclosure delay | 0,1-10 |
| Programming | digitally from controller |
|---|---|
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
| Communication | RS-485 |
| Passage direction | one-way/two-way |
| Passing speed | 10 persons/min |
| Passing width | 950 mm |
| Emergency mode | in case of a power outage, the wing remains open |
| Package contents | swing gate, bent metal arm, screw set |
| Compatible products | BXC-SPIDER - RS485 communicator |
| Environmental temperature | -15°C ~ 50°C |
| Humidity tolerance (non-condensing) | <90% |
| Gross weight | 20,15 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
