SKU
CPK-861A+

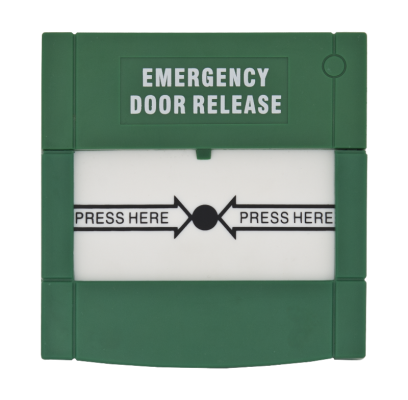

Resettable manual callpoint for access control, with 2 outputs - green

Budapest warehouse: Huge stock
Add to Compare
€21.60
Description

The CPK-861A+ is the green version of the resettable manual call point series, basically for access control systems, with 2 outputs.
The device can be tested and reset after a signal by inserting the reset key (CPK-861|KEY) into the slot provided.
The two outputs are independent of each other and can control 2 separate systems at the same time.

Downloads

Details

Almost everyone has encountered manual callpoints as an indispensable part of alarm and access control systems. There are two basic versions, those with a push-in tab and those with breakable glass. They are available in different colours, each colour being "dedicated" to a different system, but this can be deviated from if the task at hand so requires.

Legal regulation:  Decree 54/2014 (XII. 5.) BM - National Fire Safety Regulations

Installation guide, recommendation: Fire Safety Technical Guidelines (TvMI 2.6:2024.02.01.) Topic: Evacuation

10.2.8. 2Accessibility considerations according to the emergency situation:
a) Evacuation in case of fire
b) Other emergency evacuations (e.g., accidents, technical rescue, bomb threats, etc.)...
 Without a fire alarm, the door's electric lock is released using the local emergency release button, which is followed by a secondary movement
to mechanically open the door...

10.5.6. 4A Location considerations for local emergency opening devices: ( TvMI 2.6:2024.02.01. pp. 51-52)

TvMI 2.6:2024.02.01. Annex G Recommendation for the selection of door locking mechanisms for escape routes depending on their intended use (based on CFPA-E No. 2: 2003 guideline)

More Information

More Information
Operating mode/Type of device Manual call point
Switch type Microswitch
Type of switching NO/NC
Number of switches 2
Controlled output current rating 2A @ 30V DC
Controlled output timable No
Tamper protection none
Environmental temperature -30°C - +70°C
Humidity tolerance (non-condensing) max. 95%
IP rating unclassified
IK rating None
Mounting surface mounted
Installation area indoor
Housing material plastic ABS
Material Plastic
Dimensions 86 x 86 x 56 mm
Gross weight 155 gr
Package contents manual call point, reset/test key
Compatible devices CPK-860|COVER, CPK-861|KEY
Manufacturer SILIN
Warranty 12 months
Certificates CE
Product category B
