CPK-861O

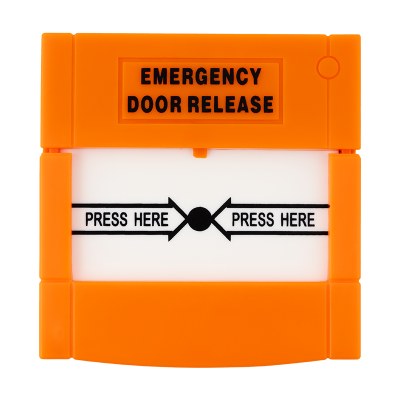

Resettable manual callpoint for RWA systems - orange
€19.20
Description
The CPK-861O is the orange version of the resettable manual callpoint series, basically for RWA systems.
The device can be tested and reset after a signal by inserting the reset key (CPK-861|KEY) into the slot provided.
Downloads
Details
Almost everyone has encountered manual callpoints as an indispensable part of alarm and access control systems. There are two basic versions, those with a push-in tab and those with breakable glass. They are available in different colours, each colour being "dedicated" to a different system, but this can be deviated from if the task at hand so requires.
More Information
| Operating mode/Type of device | Manual call point |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 2A @ 30V DC |
| Controlled output timable | No |
| Tamper protection | none |
| Environmental temperature | -30°C - +70°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
|---|---|
| Installation area | indoor |
| Housing material | plastic ABS |
| Material | Plastic |
| Dimensions | 86 x 86 x 56 mm |
| Gross weight | 146 gr |
| Package contents | manual call point, reset/test key |
| Compatible devices | CPK-860|COVER, CPK-861|KEY |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
