FLCM19-KJ-1-X

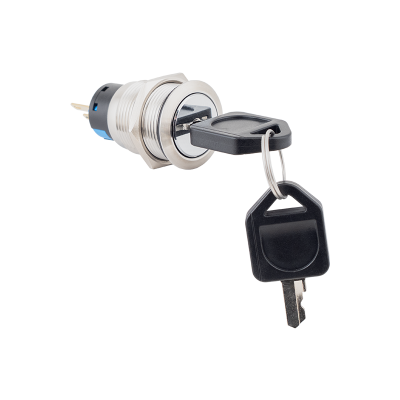

FLCM19-KJ-1-X - Key switch NO/NC/COM, two-position, 19 mm diameter, without shield
€10.60
Description
The FLCM19-KJ-1-X is a two-position key switch without a shield.
It can be fitted to all our shields with a 19 mm diameter hole.
With these, it can also be mounted in lifting frames for surface-mounted solutions.
Downloads
Details
Key micro-switches allow you to switch between the outputs of the switch manually with the key, and can be used to control several locks or control units.
More Information
| Operating mode/Type of device | Release button with key |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 5A @ 36V DC |
| Controlled output timable | No |
| Tamper protection | none |
| Mortise dimension | Ø19 x 38 mm |
| Environmental temperature | -25°C - +85°C |
| Humidity tolerance (non-condensing) | max. 85% |
| IP rating | unclassified |
| IK rating | IK08 |
| Key removal in all positions | Yes |
|---|---|
| Mounting | flush mounted |
| Installation area | indoor |
| Housing material | metal |
| Material | Plastic and metal |
| Dimensions | Ø25 x 40 mm |
| Gross weight | 25 gr |
| Package contents | keys, switch |
| Compatible devices | MP-28/19,MP-28/19-P,MP-35/19, MP-35/19-P,MP-86/19,MP-86/19-P IK-PB-P86-19 |
| Other features | 2 keys |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
