SKU
ISK-841C
ISK-841C Infrared switch with INOX shield and timer
€32.90
Description

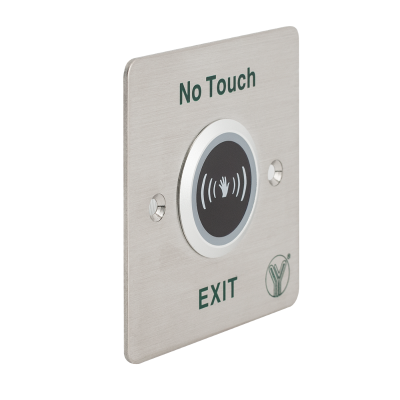

The ISK-841C is a infrared switch with an aesthetic, stainless steel INOX shield, with "NO TOUCH" written above the switch and "EXIT" written below it.
There is a ring LED around the switch, which changes from red to green when switched on and cannot be adjusted.
The output timing and detection distance can be adjusted with potentiometers located on the back of the switch.
Downloads
Details
With their above-average technological capabilities and elegant, modern appearance, infrared switches can be used almost anywhere. They do not even need to be touched to operate;
the infrared sensor detects approaching hands/objects and switches the output accordingly.
These switches can also be used in access control systems to open/close doors equipped with electric locks. However, they can be used in almost any security system as control switches, even in outdoor conditions.
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 25 mA |
| Maximum current consumtion (A) | 55 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 1A @ 30V DC |
| LED type | Two colours |
| LED colour | Red/green |
| Detection adjustable | Yes |
| Detection distance | 4 - 12 cm |
| Controlled output timable | Yes |
| Controlled output timing | 1 - 25 sec |
| Tamper protection | none |
| Dimension of faceplate | 86 x 86 mm |
| Mortise dimension | Ø45 x 24 mm |
|---|---|
| Environmental temperature | -20°C - +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | flush mounted |
| Installation area | indoor |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | 86 x 86 x 26 mm |
| Gross weight | 167 gr |
| Package contents | switch, cable (for connection) |
| Compatible devices | MBB-800B-P, MBB-800B-PM, EBOX-3, M86-42-1 |
| Manufacturer | YLI |
| Warranty | 12 months |
| Certificates | CE, EMC (EN 50130) |
| Product category | B |
