0036 1 406 98 08
SKU
SBUTTON-100-X
Infrared sensor exit button, status LED with adjustable operating distance and timing, IP66 surface protection
Ajánlott bruttó ár
Regular Price
€36.00
Special Price
€35.60
Description

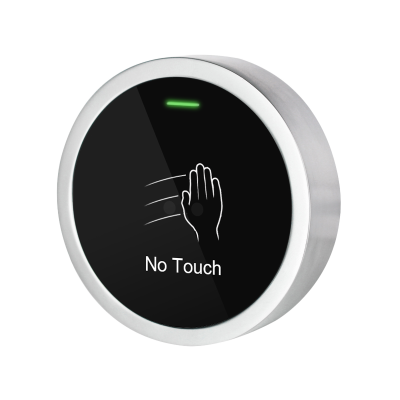

The SBUTTON-100-X is a infrared sensor exit button with an aesthetic stainless steel housing and "NO TOUCH" on the switch.
The switch has adjustable sensing distance, adjustable output timing and IP66 surface protection.
The two-colour status LED is red when standby and green when active.
Downloads
Details
With their above-average technological capabilities and elegant, modern appearance, infrared switches can be used almost anywhere. They do not even need to be touched to operate;
the infrared sensor detects approaching hands/objects and switches the output accordingly.
These switches can also be used in access control systems to open/close doors equipped with electric locks. However, they can be used in almost any security system as control switches, even in outdoor conditions.
More Information
| Voltage (V) | 10 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 15 mA |
| Maximum current consumtion (A) | 25 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 2A @ 24V DC |
| LED type | Two colours |
| LED colour | Red/green |
| Detection adjustable | Yes |
| Detection distance | 3 - 10 cm |
| Controlled output timable | Yes |
| Controlled output timing | 1-5-10 mp and bistable |
| Tamper protection | none |
|---|---|
| Environmental temperature | -20°C - +60°C |
| Humidity tolerance (non-condensing) | max. 86% |
| IP rating | IP66 on the switch surface |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor, outdoor |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | Ø73 x 20 mm |
| Gross weight | 195 gr |
| Package contents | screw set, switch, cable (for connection) |
| Manufacturer | SecuKey |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
