SKU
SBUTTON-100
Infrared sensor exit button, status LED with adjustable operating distance, IP66 surface protection
Ajánlott bruttó ár
Regular Price
€33.00
Special Price
€32.90
Description

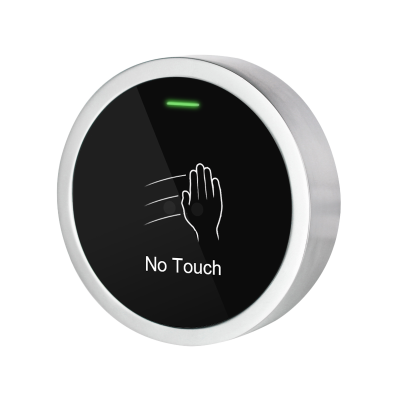

The SBUTTON-100 is a Infrared sensor exit button with an aesthetic stainless steel housing and "NO TOUCH" labelled on the switch.
The switch has adjustable sensing distance and IP66 surface protection.
The two-colour status LED is red when standby and green when active.
Downloads
Details
With their above-average technological capabilities and elegant, modern appearance, infrared switches can be used almost anywhere. They do not even need to be touched to operate;
the infrared sensor detects approaching hands/objects and switches the output accordingly.
These switches can also be used in access control systems to open/close doors equipped with electric locks. However, they can be used in almost any security system as control switches, even in outdoor conditions.
More Information
| Voltage (V) | 10 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 15 mA |
| Maximum current consumtion (A) | 25 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 2A @ 24V DC |
| LED type | Two colours |
| LED colour | Red/green |
| Detection adjustable | Yes |
| Detection distance | 3 - 10 cm |
| Controlled output timable | No |
| Opening signal length | 1 mp |
| Tamper protection | none |
|---|---|
| Environmental temperature | -20°C - +60°C |
| Humidity tolerance (non-condensing) | max. 86% |
| IP rating | IP66 on the switch surface |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor, outdoor |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | Ø73 x 20 mm |
| Gross weight | 190 gr |
| Package contents | screw set, switch, cable (for connection) |
| Manufacturer | SecuKey |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
