0036 1 406 98 08
SKU
SIA-98

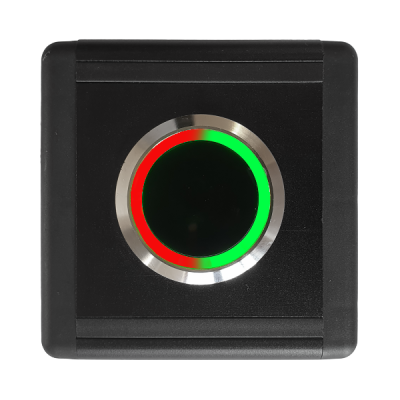

SIA-98 - Surface-mounted infrared sensor exit button LED ring switch, 80x80 mm housing, with REFLEXION protection
€46.90
Description
SIA-98 - Surface-mounted infrared sensor exit button with two-color LED ring, REFLEXION protection, in a 80 x 80 mm housing
Infrared sensor exit buttons with their above-average technological prowess, elegant and modern appearance can be used almost anywhere. No need to use a proximity switch, the infrared sensor detects the approaching hand and switches the output.
The SIA-98 is a proximity switch with an aesthetically pleasing housing that can be mounted on surfaces. Thanks to its adjustable sensing distance, timing, and other specifications, it has a wide range of applications. Access control, device protection, object movement detection.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 30 mA @ 24V DC |
| Maximum current consumtion (A) | 50 mA @ 24V DC |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 2 |
| Controlled output current rating | 1A @ 24V DC, 0,5A @ 120V AC |
| LED type | Two colours |
| LED colour | Red and green |
| Detection adjustable | Yes |
| Detection distance | 0,5 - 30 cm |
| Controlled output timable | Yes |
| Controlled output timing | 1 - 30 sec, bistable |
| Tamper protection | none |
| Environmental temperature | -10°C ~ 70°C |
|---|---|
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | IP65 on the switch surface |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor, outdoor |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | 80 x 80 x 31 mm |
| Gross weight | 199 gr |
| Package contents | switch, cable (for connection), rubber ring |
| Other features | High level of reflection protection (TOF Time-of-flight technology), IR interference protection |
| Manufacturer | SOCA |
| Warranty | 12 months |
| Certificates | CE, RoHS |
| Product category | B |
