0036 1 406 98 08
SKU
EBUTTON-1-X
Infrared switch with LED, adjustable detection distance and timing, IP66 surface protection
€25.50
Description

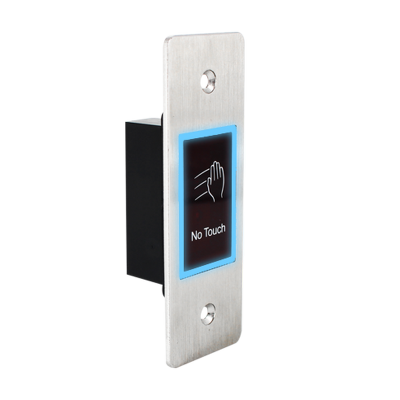

The EBUTTON-1-X is a stainless steel shielded, flush-mounted, infrared switch with a brushed finish. Both the timing of the controlled output - 5mp-10mp and bistable state, and the detection distance - adjustable from 3 to 15 cm. It also has a two-colour status LED that lights blue when the output is on standby and green when the output is active.
Downloads
Details
With their above-average technological capabilities and elegant, modern appearance, infrared switches can be used almost anywhere. They do not even need to be touched to operate;
the infrared sensor detects approaching hands/objects and switches the output accordingly.
These switches can also be used in access control systems to open/close doors equipped with electric locks. However, they can be used in almost any security system as control switches, even in outdoor conditions.
The EBUTTON-1-X is one of these switches. Its multiple adjustable and constant parameters make it suitable for a wide range of applications. However, it is mainly used in access control systems, for opening and closing doors with electric locks and for controlling other access points.
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 15 mA |
| Maximum current consumtion (A) | 25 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 2A @ 24V DC |
| LED type | Two colours |
| LED colour | Blue/green |
| Detection adjustable | Yes |
| Detection distance | 3 - 15 cm |
| Controlled output timable | Yes |
| Controlled output timing | 5sec/10sec/bistable |
| Tamper protection | none |
| Dimension of faceplate | 115 x 40 mm |
| Mortise dimension | 35 x 55 x 21 mm |
|---|---|
| Environmental temperature | -20°C - +60°C |
| Humidity tolerance (non-condensing) | max. 86% |
| IP rating | IP66 on the switch surface |
| IK rating | None |
| Mounting | flush mounted |
| Installation area | indoor, outdoor |
| Housing material | metal and plastic ABS |
| Dimensions | 115 x 40 x 25 mm |
| Gross weight | 151 gr |
| Package contents | screw set, switch |
| Compatible devices | EBOX-1, MBB-C-CH-AL |
| Other features | Electronics dimensions: 55 x 35 x 21 mm |
| Manufacturer | SecuKey |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
