0036 1 406 98 08
SKU
KY-C-SS-2
Two-position key switch with 115x40 mm shield and 2x NO/NC outputs
€17.40
Description

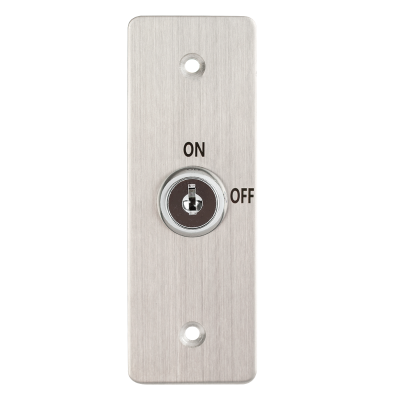

The KY-B-SS-2 is a two-position key switch with a brushed, 115 x 40 mm metal shield.
Thanks to its 2 independent NO/NC outputs, it is possible to connect several locks and controllers at the same time.
Can be flush or surface mounted using a mounting box.
Thanks to its 2 independent NO/NC outputs, it is possible to connect several locks and controllers at the same time.
Can be flush or surface mounted using a mounting box.
Downloads
Details
Key micro-switches allow you to switch between the outputs of the switch manually with the key, and can be used to control several locks or control units.
More Information
| Operating mode/Type of device | Release button with key |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 2 |
| Controlled output current rating | 1A @ 30V DC |
| Controlled output timable | No |
| Tamper protection | none |
| Dimension of faceplate | 115 x 40 mm |
| Mortise dimension | Ø25 x 25 mm |
| Environmental temperature | -10°C - +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Key removal in all positions | Yes |
|---|---|
| Mounting | flush mounted |
| Installation area | indoor |
| Housing material | metal |
| Material | Plastic and metal |
| Dimensions | 115 x 40 x 35 mm |
| Gross weight | 131 gr |
| Package contents | screw set, keys, switch |
| Compatible devices | EBOX-1, MBB-C-CH-AL |
| Other features | 2 pcs key |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
