SKU
KY-C-SS-2-rdgn
Two-position key switch with two-colour LED feedback with 115x40 shield and NO/NC output
€20.30
Description

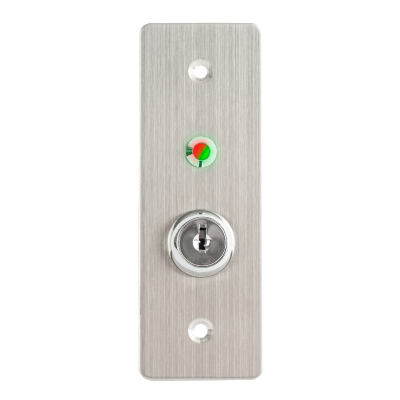

The KY-C-SS-2-rdgn is a two-position key switch with a brushed metal shield measuring 115 x 40 mm.
Thanks to its NO and NC outputs, it can be connected to a variety of locks and controls.
It can be mounted flush or surface-mounted using a mounting box.
Downloads
Details
Key micro-switches allow you to switch between the outputs of the switch manually with the key, and can be used to control several locks or control units.
The KY-C-SS-2-rdgn is a special type that provides tamper protection against unauthorized removal, with the switch position indicated by red and green LEDs.
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 15 mA |
| Maximum current consumtion (A) | 25 mA |
| Operating mode/Type of device | Release button with key |
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 1A @ 30V DC |
| LED type | Two colours |
| LED colour | Red/green |
| Controlled output timable | No |
| Tamper protection | yes (tamper switch) |
| Dimension of faceplate | 115 x 40 mm |
| Mortise dimension | 50 x 32 x 25 mm |
| Environmental temperature | -10°C - +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
|---|---|
| IP rating | unclassified |
| IK rating | None |
| Key removal in all positions | Yes |
| Mounting | flush mounted |
| Installation area | indoor |
| Housing material | metal |
| Material | Plastic and metal |
| Dimensions | 115 x 40 x 35 mm |
| Gross weight | 145 gr |
| Package contents | screw set, keys, switch |
| Compatible devices | EBOX-1, MBB-C-CH-AL |
| Other features | 2 pcs key |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | B |
