SKU
SCP-100-gn
Resetable switch call point for access contol - green
Ajánlott bruttó ár
Regular Price
€20.00
Special Price
€19.70
Description

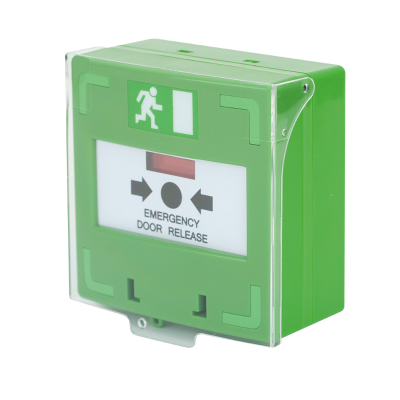

The SCP-100-gn is the green version of the SCP-100 resetable switch call point series for access control.
The device also includes a sealable protective cover to avoid accidental alarms.
Details
Almost everyone has encountered manual call points as an indispensable part of alarm and access control systems. There are two basic versions, those with a push-in tab and those with breakable glass. They are available in different colours, each colour being "dedicated" to a different system, but this can be deviated from if the task at hand so requires.
More Information
| Operating mode/Type of device | Manual call point |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 3 |
| Controlled output current rating | 3A @ 125V DC |
| Controlled output timable | No |
| Tamper protection | none |
| Environmental temperature | -30°C - +70°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
|---|---|
| Installation area | indoor |
| Housing material | plastic ABS |
| Material | Plastic and metal |
| Dimensions | 86 x 86 x 43 mm (without cover) |
| Gross weight | 173 gr |
| Package contents | screw set, manual call point, reset/test key, seal |
| Compatible devices | SCP|COVER, SCP|KEY, SCP|SEAL(P10) |
| Manufacturer | SOCA |
| Warranty | 12 months |
| Certificates | CE, RoHS |
| Product category | B |
