0036 1 406 98 08
SKU
T-100R-PRO
Timer and delay relay panel with display - 9 operating modes - 0.1 seconds - 999 minutes
Ajánlott bruttó ár
Regular Price
€14.00
Special Price
€13.50
Description

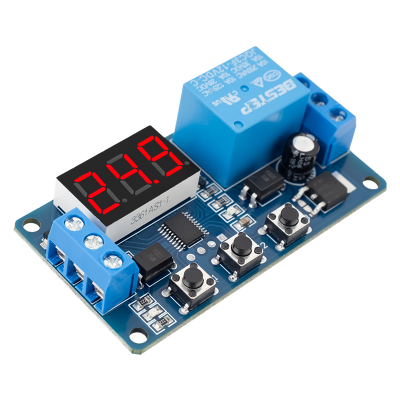

The T-100R-PRO is a versatile relay timer module with adjustable delay and 9 different operating modes.
Downloads
Details
Its 7-segment display allows for simple and precise programming of the timing settings. The timer is activated by a positive voltage on the “IN” input (4 - 20V DC). Timing and delay can be set between 0.1 seconds and 999 minutes using the buttons and display on the panel. It provides a dry contact output (NO/NC/COM), making it suitable for use in almost any system. Ideal for controlling lighting, sirens, alarms, and ventilation. The programmed settings are stored in memory, ensuring that they remain intact even in the event of a power outage.
More Information
| Product category | B |
|---|---|
| Function | Timer module |
| Voltage (V) | 12 V |
| Type of connection | screw connection |
| Controlled output current rating | 10A @ 250V AC 10A @ 30V DC |
| Controlled output type | relay (NO/NC) |
|---|---|
| Number of channels | 1 |
| Controlled output timing | 0,1 sec - 999 min |
| Other properties | Trigger input: 4 - 20V DC 7 segment display Temperature tolerance: -40 ~ 85°C Reverse polarity protection |
| Warranty | 12 months |
| Certificates | CE |
