BXA-GSM-524-4G
4G GSM module with 1 channel
€100.00
Description

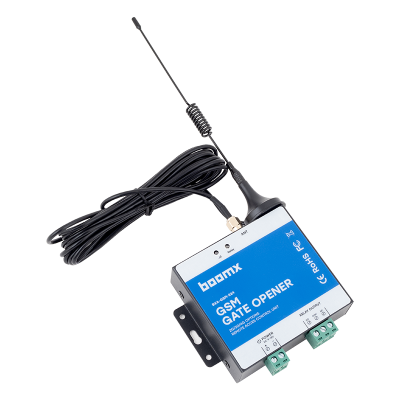

The BXA-GSM-524-4G is a remote control module with NO/NC relay output via GSM 4G network.
Remote operation is possible via phone call or SMS commands.
It can be programmed using SMS commands specified by the manufacturer.
Downloads
Details
The device allows up to 200 users to have permanent or individually restricted access based on date and time. It can also send SMS notifications about the programming and operation of the module. It can be used to control gates, garage doors, car barriers, dock gates, electric motors, street lighting, or other electrical devices that can be operated by a dry contact. The operation is performed by a free voice call, after identifying the caller, the module rejects the call and executes the control.
More Information
| Product category | F |
|---|---|
| Power supply | 9-24 V DC |
| Wiring type | via terminal block |
| Number of channels | 1 |
| Output type | NO/NC/COM |
| Output load capacity | 3 A @ 240 V AC |
| Opening signal type | timed, bistable |
| Opening signal length (if used in timed mode) | 0,5-998 sec |
| Communication | GSM |
| Mobile app | No |
|---|---|
| SIM card | Yes |
| SIM type | 1FF normal size |
| User capacity | 200 simultaneous users |
| LED | No |
| Other properties | Dimensions: 102 x 76 x 27 mm |
| Warranty (for legal entities) | 12 months |
| Certificate | CE |
| Manufacturer | BOOMX |
