0036 1 406 98 08
SKU
TKD-810

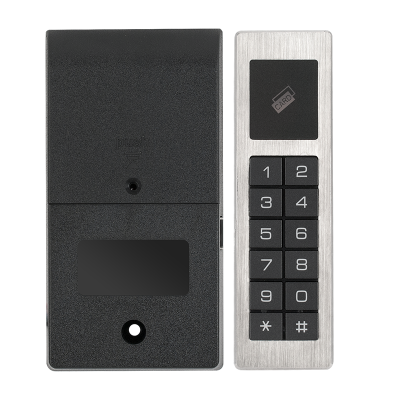

Stand-alone cabinet lock - 125 kHz EM - vertical - fix/free mode
€38.20
Description
The TKD-810 is a stand-alone, RFID reader cabinet lock designed for reading 125 kHz EM RFID tags. It is ideal for locking lockers, showcases, and cabinets.
- - The device operates in normal mode (fix), meaning it can handle a predetermined number of enrolled RFID tags (cards, key fobs, wristbands, etc.).
- - The device operates also in value-preserve mode (free), meaning it can close by any 125 kHz EM RFID, and after can be opened by the same EM RFID.
- - The RFID tags to be enrolled are not included in the package and must be purchased separately.
- - Memory capacity in normal mode: master RFID (3 pc) - user RFID (5 pcs) - code (1 pc), free mode: master RFID (1 pc) - user RFID (∞ pcs)
- - It can be used with 125 kHz RFID tags (IDT-2000EM) available from our company.
More Information
| Voltage (V) | 4,5 V |
|---|---|
| Voltage type | battery (3 x AA) |
| Maximum current consumtion (A) | < 200 mA |
| Stand-by current consumption (A) | < 20 mA |
| Operating modes | standalone, fix mode, free mode |
| Opening possibilities | PIN, RFID |
| Length of PIN | 1 - 9 digit |
| Type of RFID | 125 kHz EM |
| Reading range | ~ 1 cm |
| Programming | RFID tag |
| Memory capacity | fix mode - master: 1 RFID | user: 5 RFID, 1 code free mode - master: 1 RFID | user: ∞ RFID |
| External power supply option | yes (micro USB) |
| Opening direction (DIN 107) | universal |
| Field of use | cabinets |
| Mounting | surface mounted |
| Package contents | lock, armature plate, screw set |
|---|---|
| Interax distance - DIN | DIN |
| Installation area | indoor |
| Automatic relocking (without actual opening) | 5 sec |
| Dimension of external unit | 123 x 36 x 12 mm |
| Dimension of inernal unit | 126 x 65 x 20 mm |
| Shape of bolt/latch | latch (arrow shape) |
| Maximal door width | 50 mm |
| Notifications | draining battery (sound signal), latch pushback (sound signal) |
| IP rating | IP41 |
| Environmental temperature | 0°C ~ +45°C |
| Gross weight | 0,2 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | D |
