0036 1 406 98 08
SKU
DH-90

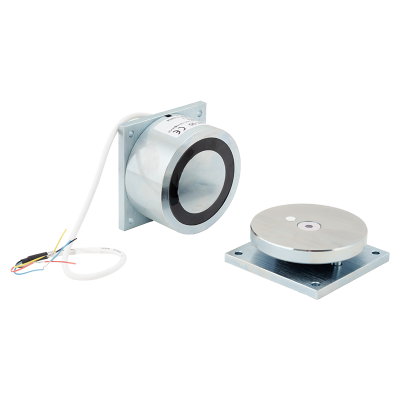

Electromagnetic door holder - wall mount - 280 kgf - 12/24V DC
€83.00
Description
The DH-90 is an aesthetically pleasing, wall-mountable, round door holder magnet with a holding force of 280 kg, whose voltage requirement is adjustable.
Downloads
Details
Door holding magnets are designed to keep fire compartment doors open until a signal is received. In the event of a fire alarm, the power supply to the magnet is interrupted, allowing the door to close.
Their easy installation and wiring ensure quick commissioning, and most models are equipped with an emergency release button to allow the door to be released without control. They are ideal for fire-rated doors.
More Information
| Voltage (V) | 12 / 24 V (default 24 V) |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 200 mA (12 V) |100 mA (24 V) |
| Power consumption (W) | 2,4 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 2,4 W |
| Expected per year consumption (kWh) | 21 kWh |
| Holding force (N) | 2745 N |
| Holding force (kgf) | 280 kgf |
| Operating modes | needs power to close |
| Build-in release button | none |
| Opening possibilities | controlled electrical signal |
| Type of control | power cut |
| Reclosure delay | - |
| Behaviour (in case of power off) | Fail-safe |
|---|---|
| Product family | SILIN electromagnetic door holder |
| Low power consumption? | yes ( ≤ 260 mA ) |
| Field of use | keeping fire doors open, keeping outdoor doors open |
| Installation area | indoor |
| Mounting | surface mounted, wall-mount |
| Package contents | electromagnetic door holder, counter plate, fixing screws |
| Dimensions | 80 x 70 x 44,5 mm |
| Dimension of armature plate | 80 x 70 x 31 mm |
| IP rating | unclassified |
| Gross weight | 2,6 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | B |
