0036 1 406 98 08
SKU
YD-604

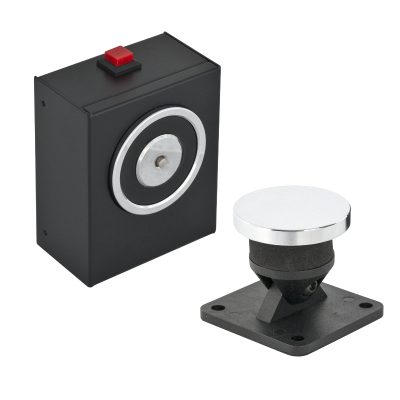

Electromagnetic door holder - wall mount
€43.00
Description
The YD-604 is a wall-mounted, 50 kg holding force, door holder magnet, with adjustable voltage requirements. Its low power consumption ensures economical use.
DoP - with Declaration of Performance.
Downloads
Details
Door holding magnets are designed to keep fire compartment doors open until a signal is received. In the event of a fire alarm, the power supply to the magnet is interrupted, allowing the door to close.
Their easy installation and wiring ensure quick commissioning, and most models are equipped with an emergency release button to allow the door to be released without control. They are ideal for fire-rated doors.
More Information
| Voltage (V) | 12 / 24 V (default 24 V) |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 140 mA (12 V) | 70 mA (24 V) |
| Power consumption (W) | 1,68 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 1,68 W |
| Expected per year consumption (kWh) | 14,7 kWh |
| Holding force (N) | 490 N |
| Holding force (kgf) | 50 kgf |
| Operating modes | needs power to close |
| Build-in release button | yes |
| Opening possibilities | push button, controlled electrical signal |
| Type of control | power cut |
| Reclosure delay | - |
| Behaviour (in case of power off) | Fail-safe |
| Low power consumption? | yes ( ≤ 260 mA ) |
|---|---|
| Field of use | keeping fire doors open |
| Installation area | indoor |
| Mounting | surface mounted |
| Package contents | electromagnetic door holder, counter plate, fixing screws |
| Related brackets | YD-34-E |
| Dimensions | 85 x 70 x 40 mm |
| Dimension of armature plate | 65 x 65 x 55 mm |
| IP rating | unclassified |
| Environmental temperature | -10°C ~ 55°C |
| Gross weight | 0,86 kg |
| Warranty | 12 months |
| Certificates | CE, DoP |
| Manufacturer | YLI |
| Product category | A |
