Mounting bracket for YES-1200 - surface mounting
For applications involving shear forces, our company offers special Shear-lock locks, which are specifically designed to provide high holding force against shear forces (forces acting parallel to the surface of the magnet).

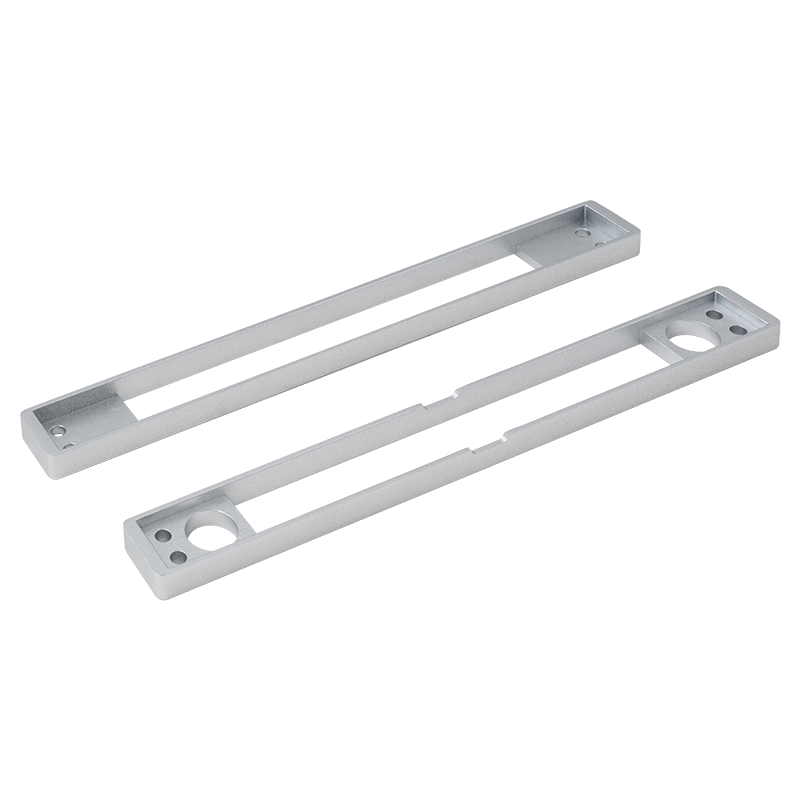

The MBK-1200 is a two-piece bracket set for installing the YES-1200 type Shear-Lock magnet lock. One part of the set is for mounting the armature plate, and the other part allows the installation of the lock. The armature plate is always mounted on the opening surface, while the magnet is mounted on the frame.
Description
Electromagnet brackets are designed to facilitate the installation of surface-mounted magnets and their counter plates. No matter what type of door you want to mount your magnet on, or what type of magnet it is, you will surely find the right bracket among our various models.
 |
Downloads
Specifications
| Mounting | surface mounted |
|---|---|
| Surface | anodized |
| Material | aluminium alloy |
| Bracket's type | mounting bracket |
| Bracket's function | mounting bracket for magnet and counter part |
| Recommended use | for plastic doors, for metal doors, for wooden doors, in the case of inward/outward opening doors |
| Dimensions | 225 x 23,5 x 9 mm (x2) |
| Package contents | bracket, screw set |
| Related electromagnetic locks | YM-2300SL |
|---|---|
| Number of fixing points | 4-4 pcs |
| Distance between fixing holes | 204 mm |
| Gross weight | 0,17 kg |
| Warranty | 12 months |
| Manufacturer | SOCA |
| Product category | A |
